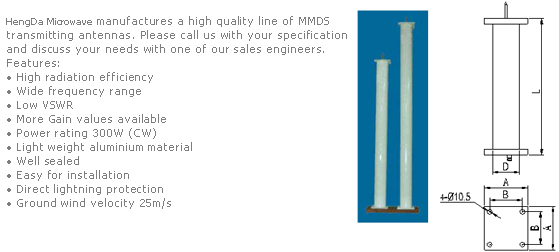

MMDS Transmitting Antenna

MMDS Transmitting Antenna

Download MMDS Transmitting Antenna Catalogue »
 MMDS Transmitting AntennaProduct Range
MODEL NO FREQ RANGE VSWR GAIN POLARIZATION BEAMWIDTH(Azimuth) BEAMWIDTH(Elevation) DIMENSIONS (D*L) DIMENSIONS (A*B) POWER HANDLING
  (GHz) Max (dB) (°) (°) (mm) (mm) (W)
HD-2527HOA10 2.5-2.7 1.5 10 Horizontal 360 6 130*1000 180*152 300 more »
HD-2527HOA12 2.5-2.7 1.5 12 Horizontal 360 5 130*1300 180*152 300 more »
HD-2527HOA16 2.5-2.7 1.5 13 Horizontal 360 4 130*1600 180*152 300 more »
HD-2527VOA10 2.5-2.7 1.5 10 Vertical 360 6 170*1000 220*180 300 more »
HD-2527VOA12 2.5-2.7 1.5 12 Vertical 360 5 170*1300 220*180 300 more »
HD-2527VOA16 2.5-2.7 1.5 13 Vertical 360 4 170*1600 220*180 300 more »
HD-2527HCA10 2.5-2.7 1.5 12 Horizontal 180 6 130*1000 180*152 300 more »
HD-2527HCA12 2.5-2.7 1.5 14 Horizontal 180 5 130*1300 180*152 300 more »
HD-2527HCA16 2.5-2.7 1.5 16 Horizontal 180 4 130*1600 180*152 300 more »
HD-2527VCA10 2.5-2.7 1.5 13 Vertical 180 6 170*1000 220*180 300 more »
HD-2527VCA12 2.5-2.7 1.5 14 Vertical 180 5 170*1300 220*180 300 more »
HD-2527VCA16 2.5-2.7 1.5 16 Vertical 180 4 170*1600 220*180 300 more »

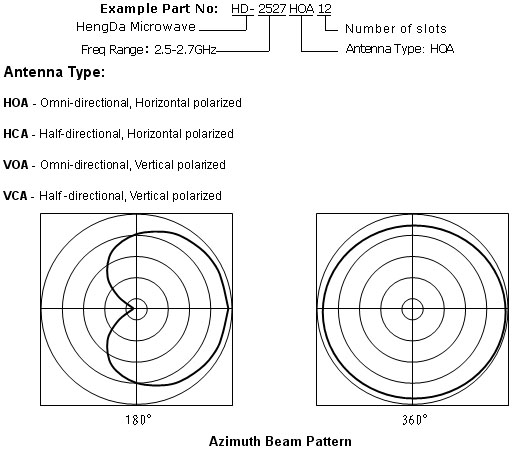

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
