| LoRaWAN Antenna |
LoRaWAN technology is the complete Internet of Things communications between terminal and cloud. LoRaWAN system solutions feature wide-area communication, high capacity, low power consumption, low cost and anti-interference. It is widely applied to such as the Internet of Things low power consumption, the wisdom city, industrial automation, intelligent household,etc.
HD's LoRaWAN antennas have stable performance. Below are some customized models according to customer's requirements for reference. Please contact us and discuss your needs with our sales engineers.

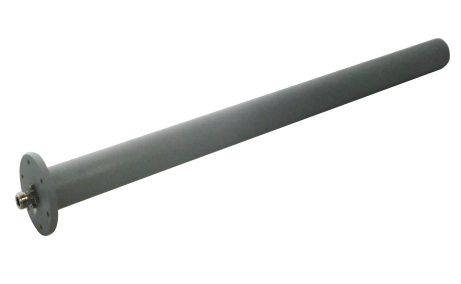

High Gain Omnidirectional Antenna
Part No:HD-1314CVOA7N
| Freq. |
1.3~1.4GHz |
| VSWR |
≤1.8 |
| Gain |
≥7dB |
| Azimuth |
360° |
| Beamwidth |
20° |
| Roundness |
≤3dB |
|

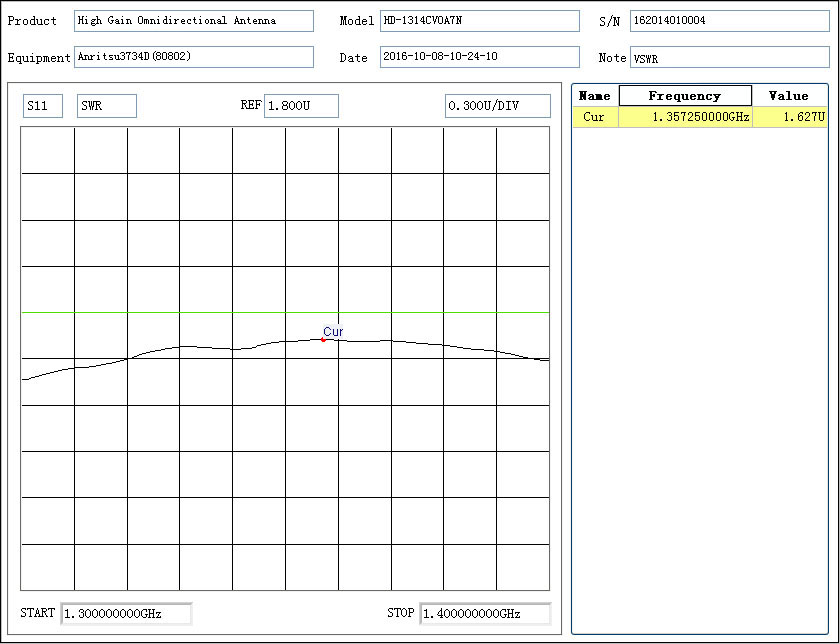

[VSWR]
|
|

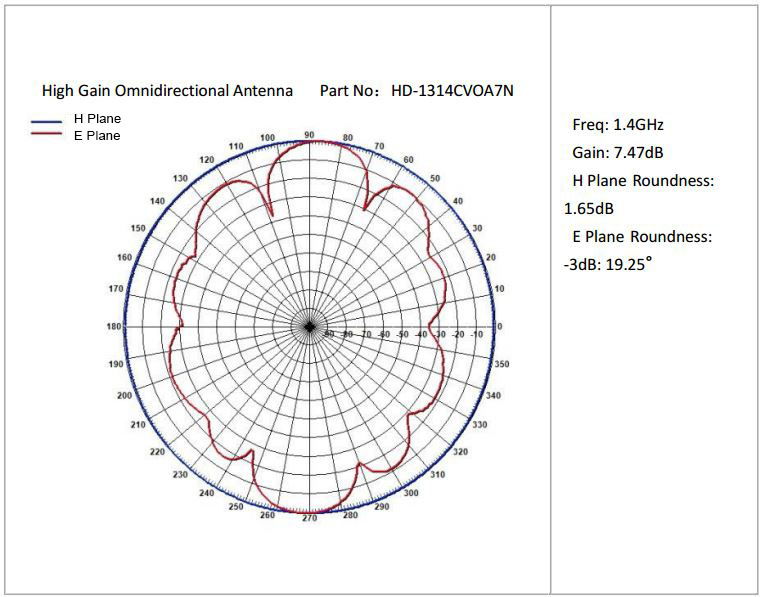

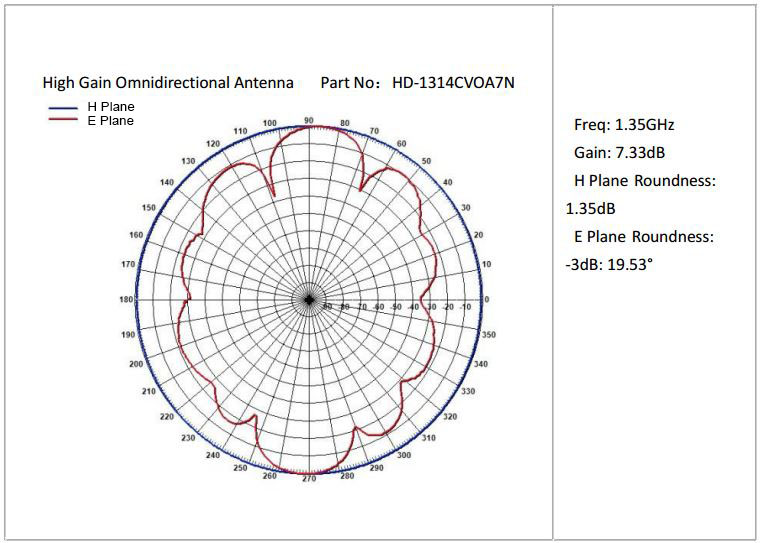

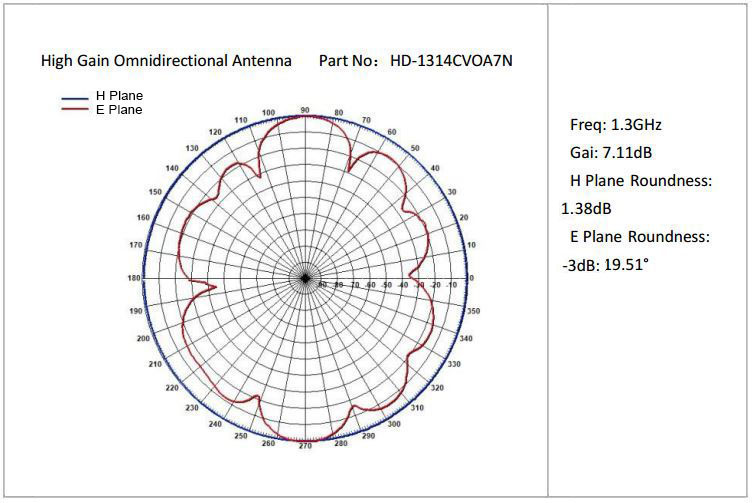

[Patterns]
|
|
| Other LoRaWAN Antennas |
 |
 |

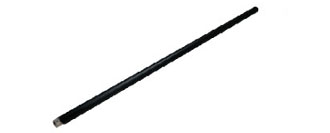

| LoRaWAN Omni Antenna--HD-0490SDAA6N |

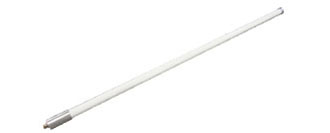

Flagelliform Omni Antenna--HD-1314CVOA4BNC |
 |
 |

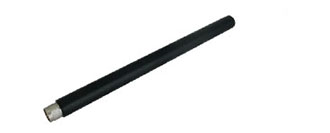

| L Band Omni Antenna--HD-1015CVOA4N |

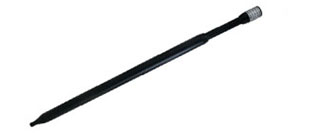

U Band Omni Antenna--HD-043047CVOA4N |
|
