Waveguide to Coaxial Adapter - Endlaunch
| HengDa Microwave manufactures End-launch Waveguide to Coaxial Adapters covering a full frequency range for Rectangular Waveguides, with multiple flange and coaxial connector types and configurations available. For more information feel free to call us and discuss your needs with one of our sales engineers. |  |  |
Download Waveguide to Coaxial Adapter - Endlaunch Catalogue »
| Waveguide to Coaxial Adapter - EndlaunchProduct Range |
| MODEL NO |
FREQ RANGE |
VSWR |
DIMENSIONS (L*B*A) |
WG TYPE (IEC/EIA) |
FLANGE TYPE |
CONNECTOR |
MATERIAL |
| |
(GHz) |
Max |
(mm) |
|
|
|
|
| HD-22WECANKPA |
1.72-2.61 |
1.25 |
128.7*106*161 |
R22/WR430 |
FDP/FDM |
N |
Al/Cu |
| HD-22WECASKPA |
1.72-2.61 |
1.25 |
113.4*106*161 |
R22/WR430 |
FDP/FDM |
SMA |
Al/Cu |
| HD-26WECANKPA |
2.17-3.30 |
1.25 |
118.7*95*138 |
R26/WR340 |
FDP/FDM |
N |
Al/Cu |
| HD-32WECANKPA |
2.60-3.95 |
1.25 |
108.7*76*114 |
R32/WR284 |
FDP/FDM |
N |
Al/Cu |
| HD-40WECANKPA |
3.22-4.90 |
1.25 |
94.7*70*98 |
R40/WR229 |
FDP/FDM |
N |
Al/Cu |
| HD-48WECANKPC |
3.94-5.99 |
1.25 |
74.7*63*89 |
R48/WR187 |
FDP/FDM |
N |
Al/Cu |
| HD-48WECASKPC |
3.94-5.99 |
1.25 |
78.4*63*89 |
R48/WR187 |
FDP/FDM |
SMA |
Al/Cu |
| HD-58WECANKPC |
4.64-7.05 |
1.25 |
72.4*62*81 |
R58/WR159 |
FDP/FDM |
N |
Al/Cu |
| HD-70WECANKPC |
5.38-8.17 |
1.25 |
68.8*49*68 |
R70/WR137 |
FDP/FDM |
N |
Al/Cu |
| HD-84WECANKPC |
6.57-9.99 |
1.25 |
58.8*48*48 |
R84/WR112 |
FBP/FBM/FBE |
N |
Al/Cu |
| HD-84WECASKPC |
6.57-9.99 |
1.25 |
49.5*48*48 |
R84/WR112 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-100WECANKPC |
8.20-12.40 |
1.25 |
49.3*41*41 |
R100/WR90 |
FBP/FBM/FBE |
N |
Al/Cu |
| HD-100WECASKPC |
8.20-12.40 |
1.25 |
40*41*41 |
R100/WR90 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-120WECANKPC |
9.84-15.0 |
1.25 |
46.3*38*38 |
R120/WR75 |
FBP/FBM/FBE |
N |
Al/Cu |
| HD-120WECASKPC |
9.84-15.0 |
1.25 |
37*38*38 |
R120/WR75 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-140WECANKPC |
11.9-18.0 |
1.25 |
43.3*33*33 |
R140/WR62 |
FBP/FBM/FBE |
N |
Al/Cu |
| HD-140WECASKPC |
11.9-18.0 |
1.25 |
34*33*33 |
R140/WR62 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-220WECASKPC |
17.6-26.7 |
1.5 |
26.5*22*22 |
R220/WR42 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-260WECASKPC |
21.7-33.0 |
1.5 |
26.1*21*21 |
R260/WR34 |
FBP/FBM/FBE |
SMA |
Al/Cu |
| HD-320WECASKPC |
26.3-40.0 |
1.5 |
25.9*19*19 |
R320/WR28 |
FBP/FBM/FBE |
SMA |
Al/Cu |

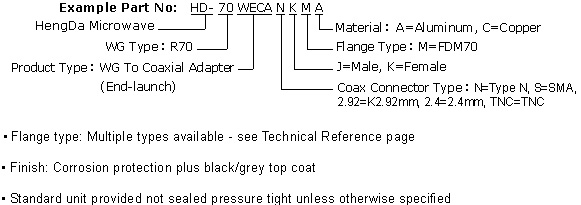

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
| [Ordering Information] |  |
|
