Waveguide Twist
HengDa Microwave offers a standard product line of waveguide twist covering waveguide sizes WR10 thru WR430. Twist angle, twist direction and flange types can be custom made as per customer鈥檚 specific requirements.Waveguide Twist
Waveguide Twist

Download Waveguide Twist Catalogue »
 Waveguide TwistProduct Range
MODEL NO FREQ RANGE VSWR MINIMUM LENGTH WG TYPE (IEC/EIA) FLANGE TYPE MATERIAL
  (GHz) Max (mm)
HD-22WTA800PPA 1.72-2.61 1.1 800 R22/WR430 FDP/FDM Al/Cu
HD-26WTA400PPA 2.17-3.30 1.1 400 R26/WR340 FDP/FDM Al/Cu
HD-32WTA300PPA 2.60-3.95 1.1 300 R32/WR284 FDP/FDM Al/Cu
HD-40WTA250PPA 3.22-4.90 1.1 250 R40/WR229 FDP/FDM Al/Cu
HD-48WTA200PPC 3.94-5.99 1.1 200 R48/WR187 FDP/FDM Al/Cu
HD-58WTA170PPC 4.64-7.05 1.1 170 R58/WR159 FDP/FDM Al/Cu
HD-70WTA150PPC 5.38-8.17 1.1 150 R70/WR137 FDP/FDM Al/Cu
HD-84WTA120PPC 6.57-9.99 1.1 120 R84/WR112 FBP/FBM/FBE Al/Cu
HD-100WTA60PPC 8.20-12.50 1.1 60 R100/WR90 FBP/FBM/FBE Al/Cu
HD-120WTA60PPC 9.84-15.0 1.1 60 R120/WR75 FBP/FBM/FBE Al/Cu
HD-140WTA50PPC 11.9-18.0 1.1 50 R140/WR62 FBP/FBM/FBE Al/Cu
HD-180WTA50PPC 14.5-22.0 1.1 50 R180/WR51 FBP/FBM/FBE Al/Cu
HD-220WTA50PPC 17.6-26.7 1.1 50 R220/WR42 FBP/FBM/FBE Al/Cu
HD-260WTA50PPC 21.7-33.0 1.15 50 R260/WR34 FBP/FBM/FBE Al/Cu
HD-320WTA50PPC 26.3-40.0 1.15 50 R320/WR28 FBP/FBM/FBE Al/Cu
HD-400WTA50PPC 32.9-60.1 1.15 50 R400/WR22 FUGP Cu
HD-500WTA50PPC 39.2-59.6 1.15 50 R500/WR19 FUGP Cu
HD-620WTA50PPC 49.8-75.8 1.15 50 R620/WR15 FUGP Cu
HD-740WTA50PPC 60.5-91.9 1.15 50 R740/WR12 FUGP Cu
HD-900WTA50PPC 73.8-112 1.15 50 R900/WR10 FUGP Cu

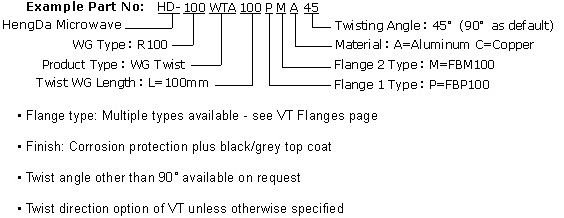

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
