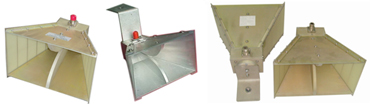

Wideband Horn Antenna
HengDa Microwave manufactures a high quality line of dual-ridged horn antennas typically used for EMI testing, surveillance equipment, antenna gain and pattern measurement. Wideband dual-ridged horn antennas are linearly polarized with high Gain, low VSWR, lightweight, covering from 0.2GHz to 40GHz. Please contact us with your specification and discuss your needs with one of our sales engineers.
Wideband Horn Antenna

Download Wideband Horn Antenna Catalogue »
 Wideband Horn AntennaProduct Range
MODEL NO FREQ RANGE GAIN BEAMWIDTH(E-Plane) BEAMWIDTH(H-Plane) VSWR CONNECTOR
  (GHz) (dB) (°) (°) Max
HD-10180DRHA10SK 1.0-18.0 8.2-14.6 30-70 23-60 2.5 SMA
HD-10180DRHA10NK 1.0-18.0 8.2-14.6 30-77 23-60 2.5 N
HD-80180DRHA10NK 8.0-18.0 2013/10/12 21-34 21-44 2.5 N
HD-80180DRHA10SK 8.0-18.0 2013/10/12 21-34 21-44 2.5 SMA
HD-180400DRHA15KK 18.0-40.0 9-15.6 17-44 18-33 2.5 K2.4mm

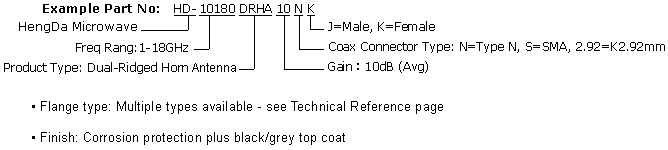

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
