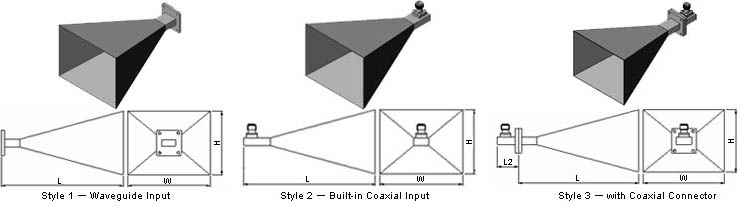

Standard Gain Horn Antenna
| HengDa Microwave manufactures a high quality line of standard gain horn antennas that are linearly polarized, lightweight and corrosion resistant. The most common Gain values available are 10, 15, 20, 25dB. Other Gain values and Horn sizes can be designed to your requirement. Please call us with your specification and discuss your needs with one of our sales engineers. |  |  |
Download Standard Gain Horn Antenna Catalogue »

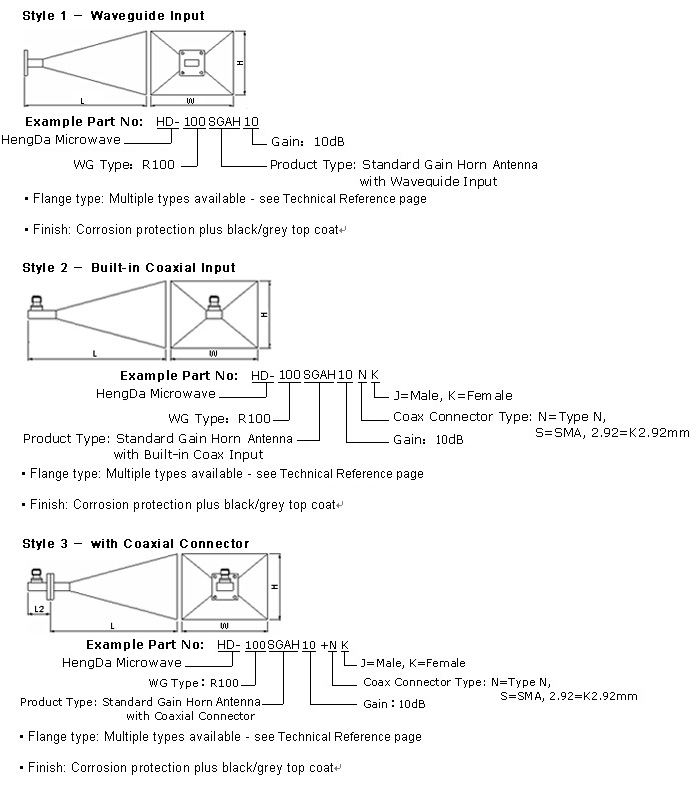

| Standard Gain Horn AntennaProduct Range |
| MODEL NO |
FREQ RANGE |
GAIN*** |
NOM 3dB BEAMWIDTH |
DIMENSIONS |
FLANGE TYPE |
WG TYPE (IEC/EIA) |
CONNECTOR |
MATERIAL |
| |
(GHz) |
(dB) |
|
(mm) |
|
|
|
|
| HD-3SGAH10 |
0.32-0.49 |
10 |
55° |
L=850,W=1150,H=800 |
FDP3 |
R3/WR2300 |
|
Al |
| HD-3SGAH10NK |
0.32-0.49 |
10 |
55° |
L=850,W=1150,H=800 |
|
R3/WR2300 |
N |
Al |
| HD-3SGAH10N+K |
0.32-0.49 |
10 |
55° |
L=1600,L2=400,W=1150,H=800 |
|
R3/WR2300 |
N |
Al |
| HD-4SGAH10 |
0.35-0.53 |
10 |
55° |
L=800,W=1050,H=720 |
FDP4 |
R4/WR2100 |
|
Al |
| HD-4SGAH10NK |
0.35-0.53 |
10 |
55° |
L=800,W=1050,H=720 |
|
R4/WR2100 |
N |
Al |
| HD-4SGAH10+NK |
0.35-0.53 |
10 |
55° |
L=1400,L2=380,W=1050,H=720 |
|
R4/WR2100 |
N |
Al |
| HD-5SGAH10 |
0.41-0.62 |
10 |
55° |
L=800,W=900,H=660 |
FDP5 |
R5/WR1800 |
|
Al |
| HD-5SGAH10NK |
0.41-0.62 |
10 |
55° |
L=800,W=900,H=660 |
|
R5/WR1800 |
N |
Al |
| HD-5SGAH10+NK |
0.41-0.62 |
10 |
55° |
L=1300,L2=350,W=900,H=660 |
|
R5/WR1800 |
N |
Al |
| HD-6SGAH10 |
0.49-0.75 |
10 |
55° |
L=700,W=700,H=500 |
FDP6 |
R6/WR1500 |
|
Al |
| HD-6SGAH10NK |
0.49-0.75 |
10 |
55° |
L=700,W=700,H=500 |
|
R6/WR1500 |
N |
Al |
| HD-6SGAH10+NK |
0.49-0.75 |
10 |
55° |
L=1100,L2=300,W=700,H=500 |
|
R6/WR1500 |
N |
Al |
| HD-8SGAH10 |
0.64-0.98 |
10 |
55° |
L=590,W=620,H=440 |
FDP8 |
R8/WR1150 |
|
Al |
| HD-8SGAH10NK |
0.64-0.98 |
10 |
55° |
L=590,W=620,H=440 |
|
R8/WR1150 |
N |
Al |
| HD-8SGAH15NK |
0.64-0.98 |
10 |
55° |
L=990,W=1070,H=750 |
|
R8/WR1150 |
N |
Al |
| HD-8SGAH10+NK |
0.64-0.98 |
10 |
55° |
L=1200,L2=260,W=620,H=440 |
|
R8/WR1150 |
N |
Al |
| HD-9SGAH10 |
0.75-1.15 |
10 |
55° |
L=300,W=480,H=336 |
FDP9 |
R9/WR975 |
|
Al |
| HD-9SGAH10NK |
0.75-1.15 |
10 |
55° |
L=480,W=480,H=336 |
|
R9/WR975 |
N |
Al |
| HD-9SGAH10+NK |
0.75-1.15 |
10 |
55° |
L=520,L2=220,W=480,H=336 |
|
R9/WR975 |
N |
Al |
| HD-9SGAH15 |
0.76-1.15 |
15 |
30° |
L=640,W=850,H=580 |
FDP9 |
R9/WR975 |
|
Al |
| HD-9SGAH15NK |
0.75-1.15 |
15 |
30° |
L=820,W=850,H=580 |
|
R9/WR975 |
N |
Al |
| HD-9SGAH15+NK |
0.75-1.15 |
15 |
30° |
L=820,L2=231,W=850,H=580 |
|
R9/WR975 |
N |
Al |
| HD-12SGAH10 |
0.96-1.46 |
10 |
55° |
L=300,W=400,H=280 |
FDP12 |
R12/WR770 |
|
Al |
| HD-12SGAH10NK |
0.96-1.46 |
10 |
55° |
L=400,W=400,H=280 |
|
R12/WR770 |
N |
Al |
| HD-12SGAH10+NK |
0.96-1.46 |
10 |
55° |
L=466,L2=166,W=400,H=280 |
|
R12/WR770 |
N |
Al |
| HD-12SGAH15 |
0.96-1.46 |
15 |
30° |
L=600,W=700,H=480 |
FDP12 |
R12/WR770 |
|
Al |
| HD-12SGAH15NK |
0.96-1.46 |
15 |
30° |
L=700,W=700,H=480 |
|
R12/WR770 |
N |
Al |
| HD-12SGAH15+NK |
0.96-1.46 |
15 |
30° |
L=766,L2=166,W=700,H=480 |
|
R12/WR770 |
N |
Al |
| HD-14SGAH10 |
1.13-1.73 |
10 |
55° |
L=280,W=315,H=235 |
FDP14 |
R14/WR650 |
|
Al |
| HD-14SGAH10NK |
1.13-1.73 |
10 |
55° |
L=370,W=315,H=235 |
|
R14/WR650 |
N |
Al |
| HD-14SGAH10+NK |
1.13-1.73 |
10 |
55° |
L=430,L2=150,W=315,H=235 |
|
R14/WR650 |
N |
Al |
| HD-14SGAH15 |
1.13-1.73 |
15 |
30° |
L=430,W=550,H=380 |
FDP14 |
R14/WR650 |
|
Al |
| HD-14SGAH15NK |
1.13-1.73 |
15 |
30° |
L=520,W=550,H=380 |
|
R14/WR650 |
N |
Al |
| HD-14SGAH15+NK |
1.13-1.73 |
15 |
30° |
L=580,L2=150,W=550,H=380 |
|
R14/WR650 |
N |
Al |
| HD-18SGAH10 |
1.45-2.20 |
10 |
55° |
L=245,W=249,H=184 |
FDP18 |
R18/WR510 |
|
Al |
| HD-18SGAH10NK |
1.45-2.20 |
10 |
55° |
L=310,W=249,H=184 |
|
R18/WR510 |
N |
Al |
| HD-18SGAH10+NK |
1.45-2.20 |
10 |
55° |
L=360,L2=120,W=249,H=184 |
|
R18/WR510 |
N |
Al |
| HD-18SGAH15 |
1.45-2.20 |
15 |
30° |
L=365,W=456,H=316 |
FDP18 |
R18/WR510 |
|
Al |
| HD-18SGAH15NK |
1.45-2.20 |
15 |
30° |
L=430,W=456,H=316 |
|
R18/WR510 |
N |
Al |
| HD-18SGAH15+NK |
1.45-2.20 |
15 |
30° |
L=480,L2=120,W=456,H=316 |
|
R18/WR510 |
N |
Al |
| HD-22SGAH10 |
1.72-2.61 |
10 |
55° |
L=210,W=209,H=154 |
FDP22 |
R22/WR430 |
|
Al |
| HD-22SGAH10NK |
1.72-2.61 |
10 |
55° |
L=260,W=209,H=154 |
|
R22/WR430 |
N |
Al |
| HD-22SGAH10+NK |
1.72-2.61 |
10 |
55° |
L=310,L2=100,W=209,H=154 |
|
R22/WR430 |
N |
Al |
| HD-22SGAH15 |
1.72-2.61 |
15 |
30° |
L=310,W=380,H=265 |
FDP22 |
R22/WR430 |
|
Al |
| HD-22SGAH15NK |
1.72-2.61 |
15 |
30° |
L=360,W=380,H=265 |
|
R22/WR430 |
N |
Al |
| HD-22SGAH15+NK |
1.72-2.61 |
15 |
30° |
L=410,L2=100,W=380,H=265 |
|
R22/WR430 |
N |
Al |
| HD-26SGAH10 |
2.17-3.30 |
10 |
55° |
L=160,W=165,H=125 |
FDP26 |
R26/WR340 |
|
Al |
| HD-26SGAH10NK |
2.17-3.30 |
10 |
55° |
L=200,W=165,H=125 |
|
R26/WR340 |
N |
Al |
| HD-26SGAH10+NK |
2.17-3.30 |
10 |
55° |
L=245,L2=85,W=165,H=125 |
|
R26/WR340 |
N |
Al |
| HD-26SGAH15 |
2.17-3.30 |
15 |
30° |
L=250,W=297,H=216 |
FDP26 |
R26/WR340 |
|
Al |
| HD-26SGAH15NK |
2.17-3.30 |
15 |
30° |
L=290,W=297,H=216 |
|
R26/WR340 |
N |
Al |
| HD-26SGAH15+NK |
2.17-3.30 |
15 |
30° |
L=335,L2=90,W=297,H=216 |
|
R26/WR340 |
N |
Al |
| HD-32SGAH10 |
2.60-3.95 |
10 |
55° |
L=150,W=144,H=114 |
FDP32 |
R32/WR284 |
|
Al |
| HD-32SGAH10NK |
2.60-3.95 |
10 |
55° |
L=175,W=144,H=114 |
|
R32/WR284 |
N |
Al |
| HD-32SGAH10+NK |
2.60-3.95 |
10 |
55° |
L=222,L2= 72,W=144,H=114 |
|
R32/WR284 |
N |
Al |
| HD-32SGAH15 |
2.60-3.95 |
15 |
30° |
L=230,W=275,H=190 |
FDP32 |
R32/WR284 |
|
Al |
| HD-32SGAH15NK |
2.60-3.95 |
15 |
30° |
L=255,W=275,H=190 |
|
R32/WR284 |
N |
Al |
| HD-32SGAH15+NK |
2.60-3.95 |
15 |
30° |
L=320,L2=90,W=275,H=190 |
|
R32/WR284 |
N |
Al |
| HD-32SGAH20 |
2.60-3.95 |
20 |
18° |
L=700,W=476,H=346 |
FDP32 |
R32/WR284 |
|
Al |
| HD-32SGAH20NK |
2.60-3.95 |
20 |
18° |
L=725,W=476,H=346 |
|
R32/WR284 |
N |
Al |
| HD-32SGAH20+NK |
2.60-3.95 |
20 |
18° |
L=772,L2=72,W=476,H=346 |
|
R32/WR284 |
N |
Al |
| HD-40SGAH10 |
3.22-4.90 |
10 |
55° |
L=150,W=113,H=88 |
FDP40 |
R40/WR229 |
|
Al/Cu |
| HD-40SGAH10NK |
3.22-4.90 |
10 |
55° |
L=185,W=130,H=88 |
|
R40/WR229 |
N |
Al/Cu |
| HD-40SGAH10+NK |
3.22-4.90 |
10 |
55° |
L=185,L2=65,W=113,H=88 |
|
R40/WR229 |
N |
Al/Cu |
| HD-40SGAH15 |
3.22-4.90 |
15 |
30° |
L=180,W=205,H=145 |
FDP40 |
R40/WR229 |
|
Al/Cu |
| HD-40SGAH15NK |
3.22-4.90 |
15 |
30° |
L=210,W=205,H=145 |
|
R40/WR229 |
N |
Al/Cu |
| HD-40SGAH15+NK |
3.22-4.90 |
15 |
30° |
L=245,L2=65,W=205,H=145 |
|
R40/WR229 |
N |
Al/Cu |
| HD-40SGAH20 |
3.22-4.90 |
20 |
18° |
L=520,W=345,H=264 |
FDP40 |
R40/WR229 |
|
Al/Cu |
| HD-40SGAH20NK |
3.22-4.90 |
20 |
18° |
L=550,W=345,H=264 |
|
R40/WR229 |
N |
Al/Cu |
| HD-40SGAH20+NK |
3.22-4.90 |
20 |
18° |
L=585,L2=65,W=345,H=264 |
|
R40/WR229 |
N |
Al/Cu |
| HD-48SGAH10 |
3.94-5.99 |
10 |
55° |
L=110,W=98,H=73 |
FDP48 |
R48/WR187 |
|
Al/Cu |
| HD-48SGAH10NK |
3.94-5.99 |
10 |
55° |
L=145,W=98,H=73 |
|
R48/WR187 |
N |
Al/Cu |
| HD-48SGAH10+NK |
3.94-5.99 |
10 |
55° |
L=164,L2= 54,W=98,H=73 |
|
R48/WR187 |
N |
Al/Cu |
| HD-48SGAH15 |
3.94-5.99 |
15 |
30° |
L=160,W=169,H=119 |
FDP48 |
R48/WR187 |
|
Al/Cu |
| HD-48SGAH15NK |
3.94-5.99 |
15 |
30° |
L=195,W=169,H=119 |
|
R48/WR187 |
N |
Al/Cu |
| HD-48SGAH15+NK |
3.94-5.99 |
15 |
30° |
L=214,L2=54,W=169,H=119 |
|
R48/WR187 |
N |
Al/Cu |
| HD-48SGAH20 |
3.94-5.99 |
20 |
18° |
L=440,W=280,H=212 |
FDP48 |
R48/WR187 |
|
Al/Cu |
| HD-48SGAH20NK |
3.94-5.99 |
20 |
18° |
L=475,W=280,H=212 |
|
R48/WR187 |
N |
Al/Cu |
| HD-48SGAH20+NK |
3.94-5.99 |
20 |
18° |
L=494,L2=54,W=280,H=212 |
|
R48/WR187 |
N |
Al/Cu |
| HD-58SGAH10 |
4.64-7.05 |
10 |
55° |
L=100,W=83,H=63 |
FDP58 |
R58/WR159 |
|
Al/Cu |
| HD-58SGAH10NK |
4.64-7.05 |
10 |
55° |
L=135,W=83,H=63 |
|
R58/WR159 |
N |
Al/Cu |
| HD-58SGAH10+NK |
4.64-7.05 |
10 |
55° |
L=150,L2=50,W=83,H=63 |
|
R58/WR159 |
N |
Al/Cu |
| HD-58SGAH15 |
4.64-7.05 |
15 |
30° |
L=130,W=141,H=97 |
FDP58 |
R58/WR159 |
|
Al/Cu |
| HD-58SGAH15NK |
4.64-7.05 |
15 |
30° |
L=165,W=141,H=97 |
|
R58/WR159 |
N |
Al/Cu |
| HD-58SGAH15+NK |
4.64-7.05 |
15 |
30° |
L=180,L2=50,W=141,H=97 |
|
R58/WR159 |
N |
Al/Cu |
| HD-58SGAH20 |
4.64-7.05 |
20 |
18° |
L=400,W=245,H=175 |
FDP58 |
R58/WR159 |
|
Al/Cu |
| HD-58SGAH20NK |
4.64-7.05 |
20 |
18° |
L=435,W=245,H=175 |
|
R58/WR159 |
N |
Al/Cu |
| HD-58SGAH20+NK |
4.64-7.05 |
20 |
18° |
L=450,L2=50,W=245,H=175 |
|
R58/WR159 |
N |
Al/Cu |
| HD-70SGAH10 |
5.38-8.17 |
10 |
55° |
L=75,W=67,H=52 |
FDP70 |
R70/WR137 |
|
Al/Cu |
| HD-70SGAH10NK |
5.38-8.17 |
10 |
55° |
L=110,W=57,H=42 |
|
R70/WR137 |
N |
Al/Cu |
| HD-70SGAH10+NK |
5.38-8.17 |
10 |
55° |
L=123,L2=48,W=67,H=52 |
|
R70/WR137 |
N |
Al/Cu |
| HD-70SGAH15 |
5.38-8.17 |
15 |
30° |
L=110,W=122,H=84 |
FDP70 |
R70/WR137 |
|
Al/Cu |
| HD-70SGAH15NK |
5.38-8.17 |
15 |
30° |
L=145,W=122,H=84 |
|
R70/WR137 |
N |
Al/Cu |
| HD-70SGAH15+NK |
5.38-8.17 |
15 |
30° |
L=158,L2=48,W=122,H=84 |
|
R70/WR137 |
N |
Al/Cu |
| HD-70SGAH20 |
5.38-8.17 |
20 |
18° |
L=290,W=197,H=153 |
FDP70 |
R70/WR137 |
|
Al/Cu |
| HD-70SGAH20NK |
5.38-8.17 |
20 |
18° |
L=325,W=197,H=153 |
|
R70/WR137 |
N |
Al/Cu |
| HD-70SGAH20+NK |
5.38-8.17 |
20 |
18° |
L=338,L2=48,W=197,H=153 |
|
R70/WR137 |
N |
Al/Cu |
| HD-84SGAH10 |
6.57-8.99 |
10 |
55° |
L=70,W=57,H=42 |
FBP84 |
R84/WR112 |
|
Al/Cu |
| HD-84SGAH10NK |
6.57-8.99 |
10 |
55° |
L=95,W=57,H=42 |
|
R84/WR112 |
N |
Al/Cu |
| HD-84SGAH10+NK |
6.57-8.99 |
10 |
55° |
L=110,L2=40,W=57,H=42 |
|
R84/WR112 |
N |
Al/Cu |
| HD-84SGAH15 |
6.57-8.99 |
15 |
30° |
L=100,W=105,H=71 |
FBP84 |
R84/WR112 |
|
Al/Cu |
| HD-84SGAH15NK |
6.57-8.99 |
15 |
30° |
L=125,W=105,H=71 |
|
R84/WR112 |
N |
Al/Cu |
| HD-84SGAH15+NK |
6.57-8.99 |
15 |
30° |
L=140,L2=40,W=105,H=71 |
|
R84/WR112 |
N |
Al/Cu |
| HD-84SGAH20 |
6.57-8.99 |
20 |
18° |
L=290,W=180,H=128 |
FBP84 |
R84/WR112 |
|
Al/Cu |
| HD-84SGAH20NK |
6.57-8.99 |
20 |
18° |
L=315,W=180,H=128 |
|
R84/WR112 |
N |
Al/Cu |
| HD-84SGAH20+NK |
6.57-8.99 |
20 |
18° |
L=330,L2=40,W=180,H=128 |
|
R84/WR112 |
N |
Al/Cu |
| HD-100SGAH10 |
8.20-12.40 |
10 |
55° |
L=50,W=47,H=37 |
FBP100 |
R100/WR90 |
|
Al/Cu |
| HD-100SGAH10NK |
8.20-12.40 |
10 |
55° |
L=75,W=47,H=37 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH10+NK |
8.20-12.40 |
10 |
55° |
L=83,L2=33,W=47,H=37 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH15 |
8.20-12.40 |
15 |
30° |
L=80,W=81,H=56 |
FBP100 |
R100/WR90 |
|
Al/Cu |
| HD-100SGAH15NK |
8.20-12.40 |
15 |
30° |
L=105,W=81,H=56 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH15+NK |
8.20-12.40 |
15 |
30° |
L=115,L2=35,W=81,H=56 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH20 |
8.20-12.40 |
20 |
18° |
L=220,W=138,H=107 |
FBP100 |
R100/WR90 |
|
Al/Cu |
| HD-100SGAH20NK |
8.20-12.40 |
20 |
18° |
L=245,W=138,H=107 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH20+NK |
8.20-12.40 |
20 |
18° |
L=255,L2=35,W=138,H=107 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH25 |
8.20-12.40 |
25 |
10° |
L=740,W=250,H=180 |
FBP100 |
R100/WR90 |
|
Al/Cu |
| HD-100SGAH25NK |
8.20-12.40 |
25 |
10° |
L=836,W=244,H=204 |
|
R100/WR90 |
N |
Al/Cu |
| HD-100SGAH25+NK |
8.20-12.40 |
25 |
10° |
L=840,L2=38,W=244,H=204 |
|
R100/WR90 |
N |
Al/Cu |
| HD-120SGAH10 |
9.84-15.0 |
10 |
18° |
L=55,W=40,H=29 |
FBP120 |
R120/WR75 |
|
Al/Cu |
| HD-120SGAH10SK |
9.84-15.0 |
10 |
18° |
L=75,W=40,H=29 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH10+SK |
9.84-15.0 |
10 |
18° |
L=55,L2=30,W=40,H=29 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH15 |
9.84-15.0 |
15 |
18° |
L=75,W=68,H=47 |
FBP120 |
R120/WR75 |
|
Al/Cu |
| HD-120SGAH15SK |
9.84-15.0 |
15 |
18° |
L=95,W=68,H=47 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH15+SK |
9.84-15.0 |
15 |
18° |
L=105,L2=30,W=68,H=47 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH20 |
9.84-15.0 |
20 |
18° |
L=200,W=115,H=83 |
FBP120 |
R120/WR75 |
|
Al/Cu |
| HD-120SGAH20SK |
9.84-15.0 |
20 |
18° |
L=220,W=115,H=83 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH20+SK |
9.84-15.0 |
20 |
18° |
L=230,L2=30,W=115,H=83 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH25 |
9.84-15.0 |
25 |
10° |
L=550,W=200,H=155 |
FBP120 |
R120/WR75 |
|
Al/Cu |
| HD-120SGAH25SK |
9.84-15.0 |
25 |
10° |
L=405,W=185,H=155 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-120SGAH25+SK |
9.84-15.0 |
25 |
10° |
L=400,L2=30,W=185,H=155 |
|
R120/WR75 |
SMA |
Al/Cu |
| HD-140SGAH10 |
11.9-18.0 |
10 |
55° |
L=55,W=37,H=27 |
FBP140 |
R140/WR61 |
|
Al/Cu |
| HD-140SGAH10SK |
11.9-18.0 |
10 |
55° |
L=75,W=37,H=27 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH10+SK |
11.9-18.0 |
10 |
55° |
L=55,L2=27,W=37,H=27 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH15 |
11.9-18.0 |
15 |
30° |
L=80,W=57,H=40 |
FBP140 |
R140/WR61 |
|
Al/Cu |
| HD-140SGAH15SK |
11.9-18.0 |
15 |
30° |
L=80,W=57,H=40 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH15+SK |
11.9-18.0 |
15 |
30° |
L=107,L2=27,W=57,H=40 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH20 |
11.9-18.0 |
20 |
18° |
L=150,W=93,H=72 |
FBP140 |
R140/WR61 |
|
Al/Cu |
| HD-140SGAH20SK |
11.9-18.0 |
20 |
18° |
L=170,W=93,H=72 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH20+SK |
11.9-18.0 |
20 |
18° |
L=177,L2=27,W=93,H=72 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH25 |
11.9-18.0 |
25 |
10° |
L=520,W=175,H=120 |
FBP140 |
R140/WR61 |
|
Al/Cu |
| HD-140SGAH25SK |
11.9-18.0 |
25 |
10° |
L=336,W=155,H=128 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-140SGAH25+SK |
11.9-18.0 |
25 |
10° |
L=356,L2=27,W=155,H=128 |
|
R140/WR61 |
SMA |
Al/Cu |
| HD-180SGAH10 |
14.5-22.0 |
10 |
55° |
L=50,W=30,H=20 |
FBP180 |
R180/WR51 |
|
Al/Cu |
| HD-180SGAH10SK |
14.5-22.0 |
10 |
55° |
L=75,W=30,H=20 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH10+SK |
14.5-22.0 |
10 |
55° |
L=77,L2=27,W=30,H=20 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH15 |
14.5-22.0 |
15 |
30° |
L=55,W=47,H=33 |
FBP180 |
R180/WR51 |
|
Al/Cu |
| HD-180SGAH15SK |
14.5-22.0 |
15 |
30° |
L=80,W=47,H=33 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH15+SK |
14.5-22.0 |
15 |
30° |
L=82,L2=27,W=47,H=33 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH20 |
14.5-22.0 |
20 |
18° |
L=140,W=80,H=56 |
FBP180 |
R180/WR51 |
|
Al/Cu |
| HD-180SGAH20SK |
14.5-22.0 |
20 |
18° |
L=165,W=80,H=56 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH20+SK |
14.5-22.0 |
20 |
18° |
L=167,L2=27,W=80,H=56 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH25 |
14.5-22.0 |
25 |
10° |
L=400,W=134,H=104 |
FBP180 |
R180/WR51 |
|
Al/Cu |
| HD-180SGAH25SK |
14.5-22.0 |
25 |
10° |
L=330,W=130,H=100 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-180SGAH25+SK |
14.5-22.0 |
25 |
10° |
L=300,L2=27,W=130,H=100 |
|
R180/WR51 |
SMA |
Al/Cu |
| HD-220SGAH10 |
17.6-26.7 |
10 |
55° |
L=45,W=24,H=17 |
FBP220 |
R220/WR42 |
|
Al/Cu |
| HD-220SGAH10SK |
17.6-26.7 |
10 |
55° |
L=75,W=24,H=17 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH10+SK |
17.6-26.7 |
10 |
55° |
L=70,L2=25,W=24,H=17 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH15 |
17.6-26.7 |
15 |
30° |
L=45,W=39,H=27 |
FBP220 |
R220/WR42 |
|
Al/Cu |
| HD-220SGAH15SK |
17.6-26.7 |
15 |
30° |
L=75,W=39,H=27 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH15+SK |
17.6-26.7 |
15 |
30° |
L=70,L2=25,W=39,H=27 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH20 |
17.6-26.7 |
20 |
18° |
L=125,W=70,H=49 |
FBP220 |
R220/WR42 |
|
Al/Cu |
| HD-220SGAH20SK |
17.6-26.7 |
20 |
18° |
L=155,W=70,H=49 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH20+SK |
17.6-26.7 |
20 |
18° |
L=150,L2=25,W=70,H=49 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH25 |
17.6-26.7 |
25 |
10° |
L=350,W=120,H=85 |
FBP220 |
R220/WR42 |
|
Al/Cu |
| HD-220SGAH25SK |
17.6-26.7 |
25 |
10° |
L=276,W=104,H=85 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-220SGAH25+SK |
17.6-26.7 |
25 |
10° |
L=271,L2=25,W=104,H=85 |
|
R220/WR42 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH10 |
21.7-33 |
10 |
55° |
L=35,W=20,H=14 |
FBP260 |
R260/WR34 |
|
Al/Cu |
| HD-260SGAH102.92K |
21.7-33 |
10 |
55° |
L=53,W=20,H=14 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH10+2.9K |
21.7-33 |
10 |
55° |
L=62,L2=27,W=20,H=14 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH15 |
21.7-33 |
15 |
30° |
L=40,W=32,H=22 |
FBP260 |
R260/WR34 |
|
Al/Cu |
| HD-260SGAH152.92K |
21.7-33 |
15 |
30° |
L=58,W=32,H=22 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH15+2.92K |
21.7-33 |
15 |
30° |
L=67,L2=27,W=32,H=22 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH20 |
21.7-33 |
20 |
18° |
L=110,W=54,H=42 |
FBP260 |
R260/WR34 |
|
Al/Cu |
| HD-260SGAH202.92K |
21.7-33 |
20 |
18° |
L=128,W=54,H=42 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH20+2.92K |
21.7-33 |
20 |
18° |
L=137,L2=27,W=54,H=42 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH25 |
21.7-33 |
25 |
10° |
L=300,W=92,H=72 |
FBP260 |
R260/WR34 |
|
Al/Cu |
| HD-260SGAH252.92K |
21.7-33 |
25 |
10° |
L=225,W=92,H=72 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-260SGAH25+2.92K |
21.7-33 |
25 |
10° |
L=220,L2=25,W=92,H=72 |
|
R260/WR34 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH10 |
26.5-40 |
10 |
55° |
L=30,W=17,H=12 |
FBP320 |
R320/WR28 |
|
Al/Cu |
| HD-320SGAH102.92K |
26.5-40 |
10 |
55° |
L=54,W=17,H=12 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH10+2.92K |
26.5-40 |
10 |
55° |
L=56,L2=26,W=17,H=12 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH15 |
26.5-40 |
15 |
30° |
L=35,W=26,H=19 |
FBP320 |
R320/WR28 |
|
Al/Cu |
| HD-320SGAH152.92K |
26.5-40 |
15 |
30° |
L=59,W=26,H=19 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH15+2.92K |
26.5-40 |
15 |
30° |
L=61,L2=26,W=26,H=19 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH20 |
26.5-40 |
20 |
18° |
L=114,W=47,H=33 |
FBP320 |
R320/WR28 |
|
Al/Cu |
| HD-320SGAH202.92K |
26.5-40 |
20 |
18° |
L=80,W=40.5,H=32 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH20+2.92K |
26.5-40 |
20 |
18° |
L=70,L2=25,W=40.5,H=32 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH25 |
26.5-40 |
25 |
10° |
L=240,W=80,H=56 |
FBP320 |
R320/WR28 |
|
Al/Cu |
| HD-320SGAH252.92K |
26.5-40 |
25 |
10° |
L=180,W=71,H=59 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
| HD-320SGAH25+2.92K |
26.5-40 |
25 |
10° |
L=116,L2=26,W=47,H=33 |
|
R320/WR28 |
SMA,2.92mm |
Al/Cu |
* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** Gain and 3dB Beamwidth values have been calculated by computer simulation.| [Ordering Information] |  |
|
