Waveguide Isolator
HengDa Microwave offers a standard product line of waveguide isolators ranging from WR10 to WR 137. For more information feel free to call us and discuss your needs with one of our sales engineers.

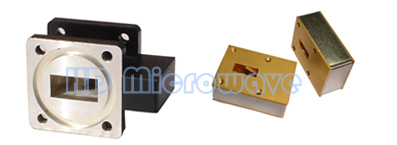

Waveguide Isolator

Download Waveguide Isolator Catalogue »
 Waveguide IsolatorProduct Range
MODEL NO FREQ RANGE OPERATING BANDWIDTH VSWR IL ISOLATION WG TYPE (IEC/EIA) FLANGE TYPE MATERIAL
  (GHz) (MHz) Max (dB) Max (dB) Min
HD-70WISO 5.38-8.17 700 1.2 0.3 20 R70/WR137 FDP/FDM Al/Cu
HD-84WISO 6.57-9.99 700 1.2 0.3 20 R84/WR112 FBP/FBM/FBE Al/Cu
HD-100WISO 8.2-12.5 800 1.2 0.3 20 R100/WR90 FBP/FBM/FBE Al/Cu
HD-120WISO 9.84-15.0 1000 1.2 0.3 20 R120/WR75 FBP/FBM/FBE Al/Cu
HD-140WISO 11.9-18.0 1000 1.2 0.3 20 R140/WR62 FBP/FBM/FBE Al/Cu
HD-180WISO 14.5-22.0 1000 1.2 0.3 20 R180/WR51 FBP/FBM/FBE Al/Cu
HD-220WISO 17.6-26.7 2000 1.2 0.3 20 R220/WR42 FBP/FBM/FBE Al/Cu
HD-260WISO 21.7-33.0 2000 1.2 0.3 20 R260/WR34 FBP/FBM/FBE Al/Cu
HD-320WISO 26.3-40.0 2000 1.2 0.3 20 R320/WR28 FBP/FBM/FBE Al/Cu
HD-400WISO 32.9-60.1 2000 1.3 0.6 20 R400/WR22 FUGP Cu
HD-500WISO 39.2-59.6 2000 1.3 0.6 20 R500/WR19 FUGP Cu
HD-620WISO 49.8-75.8 2000 1.3 0.6 20 R620/WR15 FUGP Cu
HD-740WISO 60.5-91.9 2000 1.3 0.8 20 R740/WR12 FUGP Cu
HD-900WISO 73.8-112 2000 1.3 1 20 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.

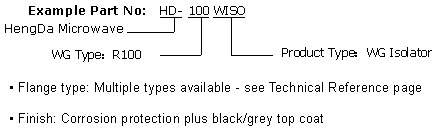

[Ordering Information]
