Waveguide Short
HengDa Microwave offers a standard product line of waveguide short plates which provide high reflection short circuits for terminating all standard waveguides. Vector Telecom offers a cover, all-clear configuration as a standard product. Alternate materials and configurations are available upon request.Waveguide Short
Waveguide Short

Download Waveguide Short Catalogue »
 Waveguide ShortProduct Range
MODEL NO FREQ RANGE VSWR THICKNESS WG TYPE (IEC/EIA) FLANGE TYPE MATERIAL
  (GHz) Max (mm)
HD-3WSA 0.32-0.49 60 23 R3/WR2300 FDP Al
HD-4WSA 0.35-0.53 60 23 R4/WR2100 FDP Al
HD-5WSA 0.41-0.62 60 18 R5/WR1800 FDP Al
HD-6WSA 0.49-0.75 60 18 R6/WR1500 FDP Al
HD-8WSA 0.64-0.98 60 14 R8/WR1150 FDP Al
HD-9WSA 0.75-1.15 60 14 R9/WR975 FDP Al
HD-12WSA 0.96-1.46 60 12 R12/WR770 FDP Al
HD-14WSA 1.13-1.73 60 12 R14/WR650 FDP Al
HD-18WSA 1.45-2.20 60 12 R18/WR510 FDP Al
HD-22WSA 1.72-2.61 60 10 R22/WR430 FDP Al
HD-26WSA 2.17-3.30 60 10 R26/WR340 FDP Al
HD-32WSA 2.60-3.95 60 8 R32/WR284 FDP Al
HD-40WSA 3.22-4.90 60 8 R40/WR229 FDP Al/Cu
HD-48WSC 3.94-5.99 60 7 R48/WR187 FDP Al/Cu
HD-58WSC 4.64-7.05 60 7 R58/WR159 FDP Al/Cu
HD-70WSC 5.38-8.17 60 7 R70/WR137 FDP Al/Cu
HD-84WSC 6.57-9.99 60 5 R84/WR112 FBP Al/Cu
HD-100WSC 8.20-12.40 60 5 R100/WR90 FBP Al/Cu
HD-120WSC 9.84-15.0 60 5 R120/WR75 FBP Al/Cu
HD-140WSC 11.9-18.0 60 5 R140/WR62 FBP Al/Cu
HD-180WSC 14.5-22.0 60 5 R180/WR51 FBP Al/Cu
HD-220WSC 17.6-26.7 60 4 R220/WR42 FBP Al/Cu
HD-260WSC 21.7-33.0 60 4 R260/WR34 FBP Al/Cu
HD-320WSC 26.3-40.0 60 4 R320/WR28 FBP Al/Cu
HD-400WSC 32.9-50.1 60 4 R400/WR22 FUGP Cu
HD-500WSC 39.2-59.6 60 4 R500/WR19 FUGP Cu
HD-620WSC 49.8-75.8 60 4 R620/WR15 FUGP Cu
HD-740WSC 60.5-91.9 60 4 R740/WR12 FUGP Cu
HD-900WSC 73.8-112 60 4 R900/WR10 FUGP Cu

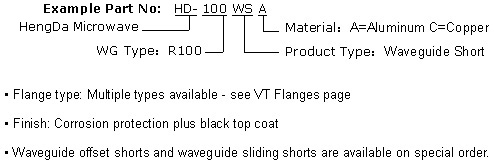

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
[Ordering Information]
