Waveguide High Power Termination
HengDa Microwave manufactures a wide selection of high power terminations. Please call us and discuss your special needs with one of our sales engineers.Waveguide High Power Termination
 Waveguide High Power TerminationProduct Range
MODEL NO FREQ RANGE VSWR*** AVG POWER WG TYPE (IEC/EIA) FLANGE TYPE MATERIAL
  (GHz) (Max) (W)
HD-14WHPL100PA 1.13-1.73 1.2 100 R14/WR650 FDP/FDM Al
HD-14WHPL350PA 1.13-1.73 1.2 350 R14/WR650 FDP/FDM Al
HD-14WHPL500PA 1.13-1.73 1.2 500 R14/WR650 FDP/FDM Al
HD-14WHPL1000PA 1.13-1.73 1.2 1000 R14/WR650 FDP/FDM Al
HD-18WHPL100PA 1.45-2.20 1.2 100 R18/WR510 FDP/FDM Al/Cu
HD-18WHPL300PA 1.45-2.20 1.2 300 R18/WR510 FDP/FDM Al/Cu
HD-18WHPL500PA 1.45-2.20 1.2 500 R18/WR510 FDP/FDM Al/Cu
HD-18WHPL1000PA 1.45-2.20 1.2 1000 R18/WR510 FDP/FDM Al/Cu
HD-22WHPL100PA 1.72-2.61 1.15 100 R22/WR430 FDP/FDM Al/Cu
HD-22WHPL250PA 1.72-2.61 1.15 250 R22/WR430 FDP/FDM Al/Cu
HD-26WHPL300PA 2.17-3.30 1.15 300 R26/WR340 FDP/FDM Al/Cu
HD-26WHPL800PA 2.17-3.30 1.15 800 R26/WR340 FDP/FDM Al/Cu
HD-32WHPL250PA 2.60-3.95 1.1 250 R32/WR284 FDP/FDM Al/Cu
HD-32WHPL500PA 2.60-3.95 1.1 500 R32/WR284 FDP/FDM Al/Cu
HD-40WHPL300PA 3.22-4.90 1.1 300 R40/WR229 FDP/FDM Al/Cu
HD-48WHPL70PC 3.94-5.99 1.1 70 R48/WR187 FDP/FDM Al/Cu
HD-48WHPL100PC 3.94-5.99 1.1 100 R48/WR187 FDP/FDM Al/Cu
HD-48WHPL400PC 3.94-5.99 1.1 400 R48/WR187 FDP/FDM Al/Cu
HD-48WHPL500PC 3.94-5.99 1.1 500 R48/WR187 FDP/FDM Al/Cu
HD-48WHPL1000PC 3.94-5.99 1.1 1000 R48/WR187 FDP/FDM Al/Cu
HD-58WHPL50PC 4.64-7.05 1.1 50 R58/WR159 FDP/FDM Al/Cu
HD-58WHPL800PC 4.64-7.05 1.1 800 R58/WR159 FDP/FDM Al/Cu
HD-70WHPL75PC 5.38-8.17 1.1 75 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL150PC 5.38-8.17 1.1 150 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL200PC 5.38-8.17 1.1 200 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL250PC 5.38-8.17 1.1 250 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL300PC 5.38-8.17 1.1 300 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL500PC 5.38-8.17 1.1 500 R70/WR137 FDP/FDM Al/Cu
HD-70WHPL550PC 5.38-8.17 1.1 550 R70/WR137 FDP/FDM Al/Cu
HD-84WHPL500 PC 6.57-9.99 1.1 500 R84/WR112 FDP/FDM Al/Cu
HD-84WHPL300PC 6.57-9.99 1.1 300 R84/WR112 FDP/FDM Al/Cu
HD-100WHPL100PC 8.20-12.40 1.1 100 R100/WR90 FBP/FBM/FBE Al/Cu
HD-100WHPL200PC 8.20-12.40 1.1 200 R100/WR90 FBP/FBM/FBE Al/Cu
HD-100WHPL300PC 8.20-12.40 1.1 300 R100/WR90 FBP/FBM/FBE Al/Cu
HD-120WHPL50PC 9.84-15.0 1.1 50 R120/WR75 FBP/FBM/FBE Al/Cu
HD-120WHPL75PC 9.84-15.0 1.1 75 R120/WR75 FBP/FBM/FBE Al/Cu
HD-120WHPL100PC 9.84-15.0 1.1 100 R120/WR75 FBP/FBM/FBE Al/Cu
HD-120WHPL150PC 9.84-15.0 1.1 150 R120/WR75 FBP/FBM/FBE Al/Cu
HD-120WHPL200PC 9.84-15.0 1.1 200 R120/WR75 FBP/FBM/FBE Al/Cu
HD-120WHPL400PC 9.84-15.0 1.1 400 R120/WR75 FBP/FBM/FBE Al/Cu
HD-140WHPL50PC 11.9-18.0 1.1 50 R140/WR62 FBP/FBM/FBE Al/Cu
HD-140WHPL100PC 11.9-18.0 1.1 100 R140/WR62 FBP/FBM/FBE Al/Cu
HD-140WHPL200PC 11.9-18.0 1.1 200 R140/WR62 FBP/FBM/FBE Al/Cu
HD-140WHPL300PC 11.9-18.0 1.1 300 R140/WR62 FBP/FBM/FBE Al/Cu
HD-140WHPL400PC 11.9-18.0 1.1 400 R140/WR62 FBP/FBM/FBE Al/Cu
HD-140WHPL500PC 11.9-18.0 1.1 500 R140/WR62 FBP/FBM/FBE Al/Cu
HD-180WHPL50PC 14.5-22.0 1.15 50 R180/WR51 FBP/FBM/FBE Al/Cu
HD-180WHPL500PC 14.5-22.0 1.15 500 R180/WR51 FBP/FBM/FBE Al/Cu
HD-220WHPL100PC 17.6-26.7 1.15 100 R220/WR42 FBP/FBM/FBE Al/Cu
HD-220WHPL200PC 17.6-26.7 1.15 200 R220/WR42 FBP/FBM/FBE Al/Cu
HD-260WHPL100PC 21.7-33.0 1.15 100 R260/WR34 FBP/FBM/FBE Al/Cu
HD-320WHPL30PC 26.3-40.0 1.15 30 R320/WR28 FBP/FBM/FBE Al/Cu
HD-400WHPL10PC 32.9-50.1 1.15 10 R400/WR22 FUGP Cu
HD-400WHPL20PC 32.9-50.1 1.15 20 R400/WR22 FUGP Cu

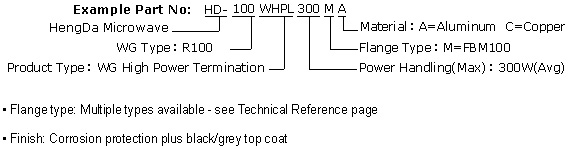

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
*** VSWR refers to 30% of waveguide bandwidth.
[Ordering Information]
