Waveguide Single Channel Rotary Joint

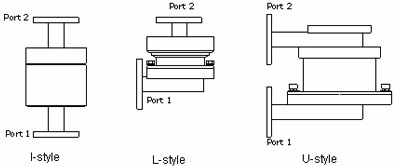

Rotary Joints (rotary couplers) are used to transmit microwave energy from stationary lines to rotating lines. The rotary joint is an electro-mechanical device with RF performance dependent upon rigorous electrical and mechanical design. Available styles are defined by physical geometry as follows:
I-style - Two in-line arms both collinear with the axis of rotation.
L-style - One arm is perpendicular to the axis of rotation.
U-style - Both arms are perpendicular to the axis of rotation.
|  |  |
Download Waveguide Single Channel Rotary Joint Catalogue »
| Waveguide Single Channel Rotary JointProduct Range |
| MODEL NO |
FREQ RANGE |
OPERATING BANDWIDTH |
VSWR |
VSWR WOW |
IL |
IL WOW |
WG TYPE (IEC/EIA) |
FLANGE TYPE |
MATERIAL |
| |
(GHz) |
(MHz) |
Max |
|
(dB) Max |
(dB) |
|
|
|
| HD-32WRJIPPA |
2.60-3.95 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R32/WR284 |
FDP/FDM |
Al/Cu |
| HD-32WRJLPPA |
2.60-3.95 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R32/WR284 |
FDP/FDM |
Al/Cu |
| HD-32WRJUPPA |
2.60-3.95 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R32/WR284 |
FDP/FDM |
Al/Cu |
| HD-40WRJIPPA |
3.22-4.90 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R40/WR229 |
FDP/FDM |
Al/Cu |
| HD-40WRJLPPA |
3.22-4.90 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R40/WR229 |
FDP/FDM |
Al/Cu |
| HD-40WRJUPPA |
3.22-4.90 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R40/WR229 |
FDP/FDM |
Al/Cu |
| HD-48WRJIPPC |
3.94-5.99 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R48/WR187 |
FDP/FDM |
Al/Cu |
| HD-48WRJLPPC |
3.94-5.99 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R48/WR187 |
FDP/FDM |
Al/Cu |
| HD-48WRJUPPC |
3.94-5.99 |
200 |
1.2 |
0.05 |
0.3 |
0.1 |
R48/WR187 |
FDP/FDM |
Al/Cu |
| HD-58WRJIPPC |
4.64-7.05 |
300 |
1.25 |
0.05 |
0.25 |
0.1 |
R58/WR159 |
FDP/FDM |
Al/Cu |
| HD-58WRJLPPC |
4.64-7.05 |
300 |
1.25 |
0.05 |
0.25 |
0.1 |
R58/WR159 |
FDP/FDM |
Al/Cu |
| HD-58WRJUPPC |
4.64-7.05 |
300 |
1.25 |
0.05 |
0.25 |
0.1 |
R58/WR159 |
FDP/FDM |
Al/Cu |
| HD-70WRJIPPC |
5.38-8.17 |
700 |
1.25 |
0.05 |
0.25 |
0.1 |
R70/WR137 |
FDP/FDM |
Al/Cu |
| HD-70WRJLPPC |
5.38-8.17 |
700 |
1.25 |
0.05 |
0.25 |
0.1 |
R70/WR137 |
FDP/FDM |
Al/Cu |
| HD-70WRJUPPC |
5.38-8.17 |
700 |
1.25 |
0.05 |
0.25 |
0.1 |
R70/WR137 |
FDP/FDM |
Al/Cu |
| HD-84WRJIPPC |
6.57-9.99 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R84/WR112 |
FBP/FBM/FBE |
Al/Cu |
| HD-84WRJLPPC |
6.57-9.99 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R84/WR112 |
FBP/FBM/FBE |
Al/Cu |
| HD-84WRJUPPC |
6.57-9.99 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R84/WR112 |
FBP/FBM/FBE |
Al/Cu |
| HD-100WRJIPPC |
8.2-12.4 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R100/WR90 |
FBP/FBM/FBE |
Al/Cu |
| HD-100WRJLPPC |
8.2-12.4 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R100/WR90 |
FBP/FBM/FBE |
Al/Cu |
| HD-100WRJUPPC |
8.2-12.4 |
300 |
1.2 |
0.05 |
0.3 |
0.1 |
R100/WR90 |
FBP/FBM/FBE |
Al/Cu |
| HD-120WRJIPPC |
9.84-15.0 |
500 |
1.25 |
0.05 |
0.3 |
0.1 |
R120/WR75 |
FBP/FBM/FBE |
Al/Cu |
| HD-120WRJLPPC |
9.84-15.0 |
500 |
1.25 |
0.05 |
0.3 |
0.1 |
R120/WR75 |
FBP/FBM/FBE |
Al/Cu |
| HD-120WRJUPPC |
9.84-15.0 |
500 |
1.25 |
0.05 |
0.3 |
0.1 |
R120/WR75 |
FBP/FBM/FBE |
Al/Cu |
| HD-140WRJIPPC |
11.9-18.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R140/WR62 |
FBP/FBM/FBE |
Al/Cu |
| HD-140WRJLPPC |
11.9-18.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R140/WR62 |
FBP/FBM/FBE |
Al/Cu |
| HD-140WRJUPPC |
11.9-18.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R140/WR62 |
FBP/FBM/FBE |
Al/Cu |
| HD-180WRJIPPC |
14.5-22.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R180/WR51 |
FBP/FBM/FBE |
Al/Cu |
| HD-180WRJLPPC |
14.5-22.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R180/WR51 |
FBP/FBM/FBE |
Al/Cu |
| HD-180WRJUPPC |
14.5-22.0 |
1000 |
1.3 |
0.05 |
0.4 |
0.1 |
R180/WR51 |
FBP/FBM/FBE |
Al/Cu |
| HD-220WRJIPPC |
17.6-26.7 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R220/WR41 |
FBP/FBM/FBE |
Al/Cu |
| HD-220WRJLPPC |
17.6-26.7 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R220/WR41 |
FBP/FBM/FBE |
Al/Cu |
| HD-220WRJUPPC |
17.6-26.7 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R220/WR41 |
FBP/FBM/FBE |
Al/Cu |
| HD-260WRJIPPC |
21.7-33.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R260/WR34 |
FBP/FBM/FBE |
Al/Cu |
| HD-260WRJLPPC |
21.7-33.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R260/WR34 |
FBP/FBM/FBE |
Al/Cu |
| HD-260WRJUPPC |
21.7-33.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R260/WR34 |
FBP/FBM/FBE |
Al/Cu |
| HD-320WRJIPPC |
26.3-40.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R320/WR28 |
FBP/FBM/FBE |
Al/Cu |
| HD-320WRJLPPC |
26.3-40.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R320/WR28 |
FBP/FBM/FBE |
Al/Cu |
| HD-320WRJUPPC |
26.3-40.0 |
2000 |
1.4 |
0.05 |
1 |
0.1 |
R320/WR28 |
FBP/FBM/FBE |
Al/Cu |

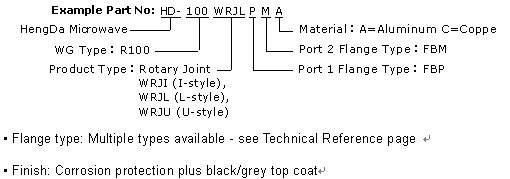

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.
| [Ordering Information] |  |
|
