E-Plane Tee
HengDa Microwave manufactures a wide variety of E-Plane Tees. The junction of the auxiliary arm is made on the broad wall of the main waveguide. E-Plane Tee
E-Plane Tee

Download E-Plane Tee Catalogue »
 E-Plane TeeProduct Range
MODEL NO FREQ RANGE WG TYPE (IEC/EIA) FLANGE TYPE MATERIAL
  (GHz)
HD-3WET 0.32-0.49 R3/WR2300 FDP/FDM Al
HD-4WET 0.35-0.53 R4/WR2100 FDP/FDM Al
HD-5WET 0.41-0.62 R5/WR1800 FDP/FDM Al
HD-6WET 0.49-0.75 R6/WR1500 FDP/FDM Al
HD-8WET 0.64-0.98 R8/WR1150 FDP/FDM Al
HD-9WET 0.77-1.14 R9/WR975 FDP/FDM Al
HD-12WET 0.96-1.46 R14/WR770 FDP/FDM Al
HD-14WET 1.14-1.72 R14/WR650 FDP/FDM Al
HD-18WET 1.45-2.20 R18/WR510 FDP/FDM Al
HD-22WET 1.72-2.60 R22/WR430 FDP/FDM Al
HD-26WET 2.17-3.30 R26/WR340 FDP/FDM Al/Cu
HD-32WET 2.60-3.95 R32/WR284 FDP/FDM Al/Cu
HD-40WET 3.30-4.90 R40/WR229 FDP/FDM Al/Cu
HD-48WET 3.95-5.85 R48/WR187 FDP/FDM Al/Cu
HD-58WET 4.90-7.05 R58/WR159 FDP/FDM Al/Cu
HD-70WET 5.85-8.20 R70/WR137 FDP/FDM Al/Cu
HD-84WET 2.60-3.95 R84/WR112 FBP/FBM/FBE Al/Cu
HD-100WET 8.20-12.4 R100/WR90 FBP/FBM/FBE Al/Cu
HD-120WET 10.0-15.0 R120/WR75 FBP/FBM/FBE Al/Cu
HD-140WET 12.4-18.0 R140/WR62 FBP/FBM/FBE Al/Cu
HD-180WET 15.0-22.0 R180/WR51 FBP/FBM/FBE Al/Cu
HD-220WET 18.0-26.5 R220/WR42 FBP/FBM/FBE Al/Cu
HD-260WET 22.0-33.0 R260/WR34 FBP/FBM/FBE Al/Cu
HD-320WET 26.3-40.0 R320/WR28 FBP/FBM/FBE Al/Cu
HD-400WET 32.9-60.1 R400/WR22 FUGP Cu
HD-500WET 39.2-59.6 R500/WR19 FUGP Cu
HD-620WET 49.8-75.8 R620/WR15 FUGP Cu
HD-740WET 60.5-91.9 R740/WR12 FUGP Cu
HD-900WET 73.8-112 R900/WR10 FUGP Cu

* The Standard Model Numbers above are the most common parts ordered for size, material and flange. However, these models can easily be altered to accommodate your needs by using the Model # code system below for complete part number.
** Please refer to the Technical Reference section for flange types/connectors details. Please contact us for your specific requirements.

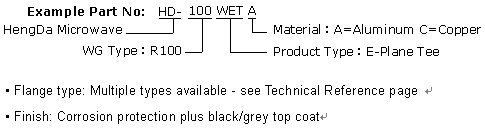

[Ordering Information]
